Product Overview

Titan Metals specializes in the distribution of stainless steel alloys in a variety of sizes, which can be found below with brief descriptions about the characteristics of each alloy. Our stainless steels all differ in chemical composition to meet the specific needs of our clients. If your project requires an alloy that has not been listed, please contact us at info@titanmetals.com and we’d be happy to assist you.


303

This steel is corrosion-resistant to atmospheric exposures, as well as most organic and many inorganic chemicals.

304

By far the most widely used stainless and heat-resisting steel; very good formability and can be readily welded. It is also characterized by its corrosion resistance to many chemical and industrial atmospheres.

304L

This steel is a low-carbon variation of T-304, which avoids harmful carbide precipitation due to welding. It is characterized by the same corrosion resistance but has lower mechanical properties than T-304.

316

This alloy offers better corrosion and pitting resistance as well as higher strength at elevated temperatures than T-304. It is commonly used for applications in pumps, valves, textile and chemical equipment, as well as for pulp/paper and marine applications.

316L

This steel is a low-carbon variation of T-316, which avoids harmful carbide precipitation due to welding, though it has the same superior corrosion resistance of T-316.

*Not all sizes are available in all alloys due to mill specific production

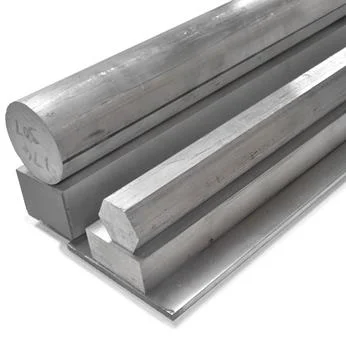

stainless steel bar - flat, hex, round, square.jpg

bar 12 r/l

True Mill Flat Bar (Hot Rolled Annealed & Pickled - HRAP):

  • Alloys: 303, 304/L, 316/L

  • Thickness: 1/8" (.125") - 3"

  • Width: 1/2" (.500") - 6"

Gauer Bar (Plate-cut):

  • Alloys: 303, 304L, 316L

  • Thickness: 1/8" - 1/2”

  • Width: 1/2" - 12"
    *Custom widths can also be produced.

Square:

  • Alloys: 303, 304/L, 316/L

  • Size: 3/16" - 3"

Round:

  • Alloys: 303, 304/L, 316/L, 416

  • Size: 1/8" - 20"

Half-Round:

  • Alloys: 304, 304L

  • Size: 1/2, 5/8, 3/4

Hex:

  • Alloys: 303, 304/L, 316/L

  • Size: 3/16" - 3"


stainless steel bar - flat, hex, round, square.jpg

Bar: 20' R/L

Angle:

  • Alloy: 304/L, 316

  • Leg: 3/4’ - 6”

  • Thickness: 1/8" - 1/2"

Unequal Angle:

  • Alloy: 304L, 316L

  • Leg 1: 2" - 8"

  • Leg 2: 1" - 4"

  • Thickness: 3/16" - 1/2"

Tee Bar:

  • Alloy: 304L

  • Size: 1" - 4"

  • Thickness: 1/8" - 3/8"

Channel 20 Ft. R/L

  • Alloy: 304?l, 316/L

  • Size: 1.5” x .750” x .125” to 15”

  • Specs: QQS - ASTM - ASME



Tube: 20' R/L ornamental / structural

Alloy: 304/L, 316L

  • Size: 3/16" - 12"

  • Thickness: 22ga - 1"

  • Round, Square, Rectangle

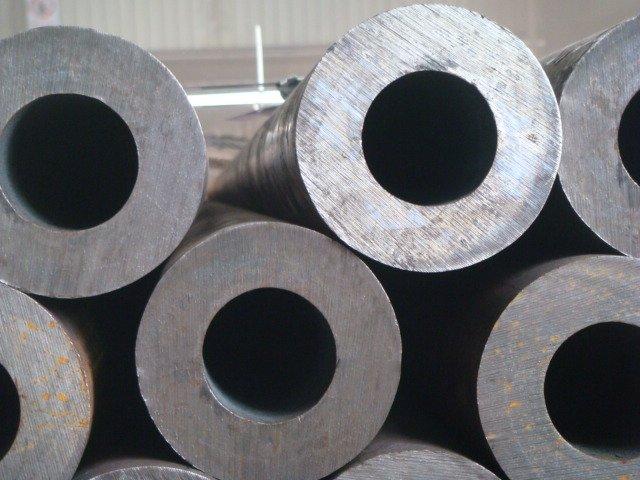

Pipe: 20' R/L

Random Lengths (18' - 22')

  • Alloy: 304/L, 316/L

  • Size: 1/4" - 36"

  • Thickness: SCH 5 - SCH XX



Sheet

Alloys: 304/L, 316L, 430

  • Thickness: sizes ranging from 28ga - 7ga

  • Width: 36” - 72”

  • Length: 96”, 120”, 144’

*Custom leveling to specials lengths is available

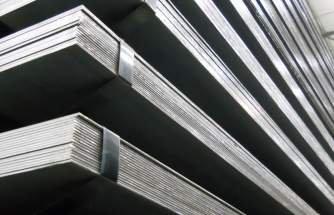

Plate

Alloys: 303, 304/L, 316L, 409, 410

  • Thickness: Sizes ranging from 3/16” - 3”

  • Width: 48”, 60”, 72”, 96”

  • Length: 96", 120”, 144”, 240”

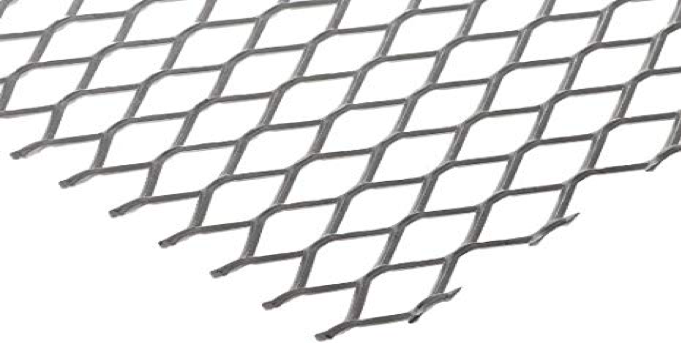

expanded sheet.png

Expanded Sheet

Raised and Flattened

  • Sizes range from: 1/4" -- No. 18 through 1.5" -- No. 9

  • Sheet gauges: 18 - 9

  • Sheet widths: 36”, 48”, 60”

  • Sheet lengths: 96", 120”, 144”


tread plate.png

Tread Plate

  • Alloys: 304, 316

  • Widths: 48”, 60”

  • Lengths: 96”, 120”



Perforated Metal

  • Hole sizes: Ranging from 0.020" diameter hole, .043" centers, with 20% open areas up to 1" diameter holes, 1.375" centers, with 48% open areas

  • Sheet gauges: 30 - 11

  • Sheet widths: 36" - 48"

  • Sheet lengths: 96" - 120"

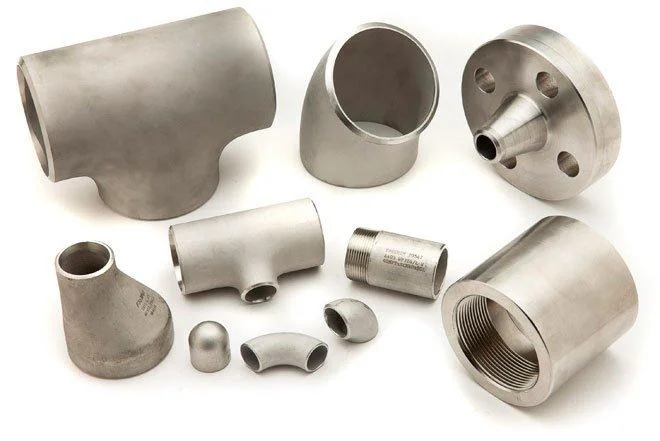

Valves & Fittings

Nipples - Schedule: 10s, 40s, 80s, Seamless / Welded

Butt-Weld Fittings 45*/90* lR & SR Seamless / Welded

  • Tees: Straight & Reducing

  • Elbows

  • Reducers: Concentric & Eccentric

  • Caps

  • 150# / 3000# Fittings

  • Tees: Straight & Reducing

  • Elbows: 90*, 45*, 90* Street

  • Outlets: Socket Weld, Threaded, Couplings, Caps, Plugs, Brushing, Inserts & Unions

150# / 300# Flanges

  • Weld Neck, Slip On, Threaded, Blind, Socket Weld & Lap Joints

  • Raised Face & Flat Face
